Smart Home Appliance Brands Standardize On Metal Dome Keypads As Touch Panels Hit Cost And Reliability Limits

Appliance controls went through a full cycle over the past ten years. Capacitive touch panels arrived as the premium look, then hit the same wall in every product category: they work beautifully until the user's hands are wet, soapy, gloved or greasy - which is most of the time in a kitchen or laundry room. They add cost per button, they complicate EMC compliance with their sensing circuitry, and they fail in a way that is hard to diagnose, because the failure is often in the sensing algorithm's interaction with humidity, not in a component. Meanwhile the control board underneath still needed a switch layer, and that switch layer kept coming back to the same proven technology: a metal dome.

Why Metal Domes Are Coming Back Into Appliance Panels

Metal dome keypads never left appliances - they have been in microwaves, washing machines and air conditioner remote controls for decades. What changed is the position they occupy in new designs. Where touch panels were once specified as the flagship interface, recent appliance platforms specify a dome keypad with an overlay as the primary interface, and reserve capacitive sensing for the few buttons where a touch surface genuinely adds value. The reasons are concrete:

• Wet-hand reliability: a dome switch works through the overlay regardless of moisture, soap residue or oil on the panel. Capacitive sensing under the same conditions needs aggressive tuning and still misreads.
• Cost per button: a dome array with overlay costs a fraction of a capacitive sensing circuit per key, and the difference scales with button count.
• Field failure transparency: when a dome button fails, it fails electrically and diagnosably. A touch panel failure reads as "the button stopped working" with the cause buried in firmware and humidity data.
• Haptic certainty: appliance users press buttons with their whole hand, often in a hurry, without looking. The tactile click of a dome - the actuation point you can feel - beats any simulated haptic for the confirmation that matters in a laundry room.

What Appliance Panels Ask of a Dome That Consumer Electronics Does Not

Appliance buttons are different from phone or remote control buttons in ways that change the dome specification. The button is large, the user presses with a finger or a thumb through a thick overlay, and the panel lives in heat, humidity and chemical exposure. Three specification points carry most of the engineering:

• Force and travel through a thick overlay: appliance overlays are thicker than consumer overlays, which means the dome's travel and tactile ratio must be set so the click still reads through the overlay's compliance. A dome tuned for a phone won't feel right under a 0.5mm membrane with a graphic print; the force window is re-set for the actual stack.
• Temperature and humidity endurance: a washing machine control board sees heat, steam and humidity cycling. The dome material, plating and adhesive must hold their properties across the appliance's operating window, which is why Shanyo qualifies appliance dome programs with the same thermal cycling and humidity testing used on automotive parts.
• Long life at high press rates: appliance buttons are pressed far more often than the average consumer button - an induction cooktop power key can be cycled thousands of times in a single busy kitchen week. Life ratings of one million actuations are the entry level, not the target.

The Switch Stack That Works in Appliances

The typical appliance control panel that Shanyo supplies is a stack rather than a single part: a graphic overlay on top, a dome sheet array in the middle, and a rigid or flexible printed circuit at the bottom, with the domes giving each button its actuation point. The dome sheet array form is what makes this practical at appliance volume, because the domes arrive pre-arrayed on film with alignment built in, so the control board assembles without handling individual domes.

The overlay and the dome array are designed together, and this is where a supplier with both capabilities earns its keep. Overlay thickness, dome force and adhesive seating all interact: too stiff an overlay and the user cannot feel the click; too soft and the dome actuates before the overlay registers the press. Shanyo quotes the dome force against the customer's actual overlay sample rather than against a standalone dome spec, which is the difference between a panel that feels right on the first prototype and one that takes three rounds of adjustment.

Where Touch Panels Still Win - and Where They Don't

It is worth being precise about the boundary, because the appliance industry is not abandoning touch interfaces. Capacitive touch still wins for continuous-value controls - sliders, dimmers, scroll wheels - where a dome's discrete actuation is the wrong tool. It wins for large seamless glass panels where the aesthetic requirement is explicitly one unbroken surface. And it wins on premium displays where the touch layer is part of a display module anyway.

But for discrete buttons - the ones with a label, a fixed function and a user who is not looking at the panel - the dome is the better engineering answer in most appliance environments. The industry trend line reflects that: new appliance platforms are specifying hybrid panels, with dome keypads for the discrete functions and capacitive sensing reserved for the continuous controls, rather than all-touch panels.

How the Trend Shows Up in Shanyo's Order Book

The demand signal inside Shanyo's Qingdao factory matches the design trend. Appliance OEM and contract manufacturer orders for dome arrays with appliance-grade specifications - higher force windows, thicker overlay compatibility, extended life ratings, temperature cycling qualification - have grown consistently over the past two years, and the mix is shifting from consumer-grade parts toward appliance-grade builds with automotive-style documentation. The same customers who specified capacitive panels in their previous platforms are now quoting dome arrays with backlit overlays for the next generation.

Backlit Overlay Compatibility

A growing share of appliance panels are backlit - LED-lit legends on the overlay, either as part of the design or as a low-cost alternative to a display. Dome arrays support backlighting well: the dome sits under the overlay, the LED lights the legend from below or from the edge through a light guide, and the switch function is unaffected by the lighting stack. The design constraint is the same as everywhere else - the overlay print and the dome position must register, and the light guide (if used) must not add thickness that dulls the dome's tactile feel. Shanyo's membrane switch line covers the backlit versions of this construction for appliance programs that want the switch layer and lighting designed as one assembly.

What Appliance Buyers Should Specify When Quoting Domes

For a buyer moving an appliance control from touch to dome keypads, the RFQ should carry more than the button count and layout:

• The overlay construction - material, thickness, and whether the graphic is printed on the top or bottom surface - because it sets the force and travel requirement.
• The operating environment - temperature range, humidity exposure, chemical cleaning agents - because it sets plating and adhesive choices.
• The life target and the press rate estimate, which set the force window and the dome material.
• Whether the panel is backlit, and how the LED stack is built.
• The assembly method - manual placement, automated placement from reels, or pre-arrayed sheets - which decides the dome array format.

The Documentation Shift: Appliance Domes Are Getting Automotive Documentation

One more change is worth noting for suppliers and buyers alike: appliance OEMs are asking for automotive-grade documentation on dome programs. PPAP-style first articles, lot traceability, force curve records and material certificates are increasingly standard requirements in appliance RFQs, pushed by quality organizations that learned the discipline from the automotive supply chain. Shanyo's appliance dome programs already ship with the same lot trace codes, force test records and certificates of conformance as the automotive line, so the documentation shift does not require a process change - it requires the customer to know the data exists and ask for it.

What Shanyo Supplies to the Appliance Market

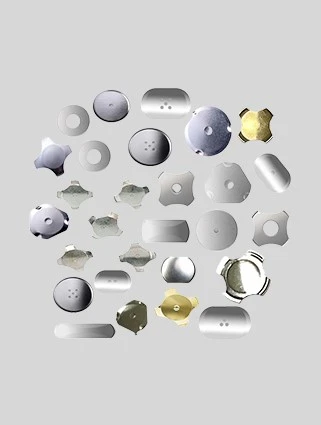

Shanyo's appliance offering spans the full switch stack: metal domes in loose and dome sheet array form, membrane switches with backlight options, silicone keypads for appliance handles and control surfaces that need molded keys, and the die-cut adhesive and spacer parts that hold the stack together. All of it is produced in-house under IATF 16949 and ISO 9001 quality systems, which matters more to appliance customers every quarter as the documentation bar rises.

For an appliance control program evaluating a switch technology, the practical advice is the same one Shanyo gives every customer: send the overlay construction and the operating environment with the button layout, and the engineering team will return a force and construction recommendation, a sample lead time and a cost comparison against the touch alternative. For appliance brands standardizing on dome keypads, the dome array and membrane switch lines are the two places to start the conversation.

Case Pattern: Washing Machine and Dishwasher Controls

The washing machine control panel is the best illustration of why the industry shifted back. A washing machine runs for hours in a humid room, gets its panel touched with damp hands, and is operated by users who are not looking at the buttons while loading laundry. Early touch panels on laundry platforms produced a well-documented complaint pattern - missed presses, phantom presses when moisture bridged the sensing area, and field replacements that cost more than the panel itself. The dome-based alternative eliminates the sensing layer entirely: the switch is mechanical, the overlay seals the panel, and the failure mode - if one ever appears - is a measurable open circuit in one button, not an algorithm mystery. Dishwasher controls add detergent and heat cycling to the same story, which is why the shift shows up there first.

How the Shift Affects the Supply Chain

The standardization on dome keypads changes more than the control board. It changes the qualification burden on the supply chain: appliance programs now need suppliers that can document force curves, hold lot traceability and certify material compliance, the same capabilities the automotive industry has required for a decade. It changes the tooling picture, because dome arrays for appliance panels are custom - the layout, force and overlay registration are per-program, not catalog items. And it changes the engineering conversation between buyer and supplier: the useful RFQ for a dome keypad is not a parts list, it is a description of the panel, the environment and the user - the supplier does the switch engineering. Shanyo positions its engineering review around exactly that conversation, because a dome array specified without the overlay and environment data is a prototype that will be re-specified twice.

For appliance brands that have been burned by a touch-panel field issue, the decision framework is short: if the control has discrete labeled buttons, users press with wet or gloved hands, and the panel must survive years of heat and humidity, a dome keypad with a sealed overlay is the lower-risk engineering choice - and now, increasingly, the lower-cost one as well. The touch layer remains the right answer for continuous controls and seamless premium surfaces, and the hybrid panel is where the industry has landed. On the supply side, the qualification bar is the one thing appliance buyers should not negotiate: force curve records, lot traceability and material certificates are what make a dome program predictable, and they are standard on Shanyo appliance builds.
